Leírás
- Gross weight: 14.41 kg
- Net weight: 14.41 kg
- Application energy level: Universal MBP/HBP
- Applications: HBP, MBP
- Auxiliary winding resistance (start winding) for single-phase compressors alt [Ohm]: 13.7 Ohm
- Base plate type: Universal
- Brand technique: Reciprocating compressor
- Capacity control: Fixed speed
- Colour: Black
- Compressor power supply [V/Ph/Hz]: 220-240/1/50
- Configuration code: Single
- Cut in current HST [A]: 20.4 A

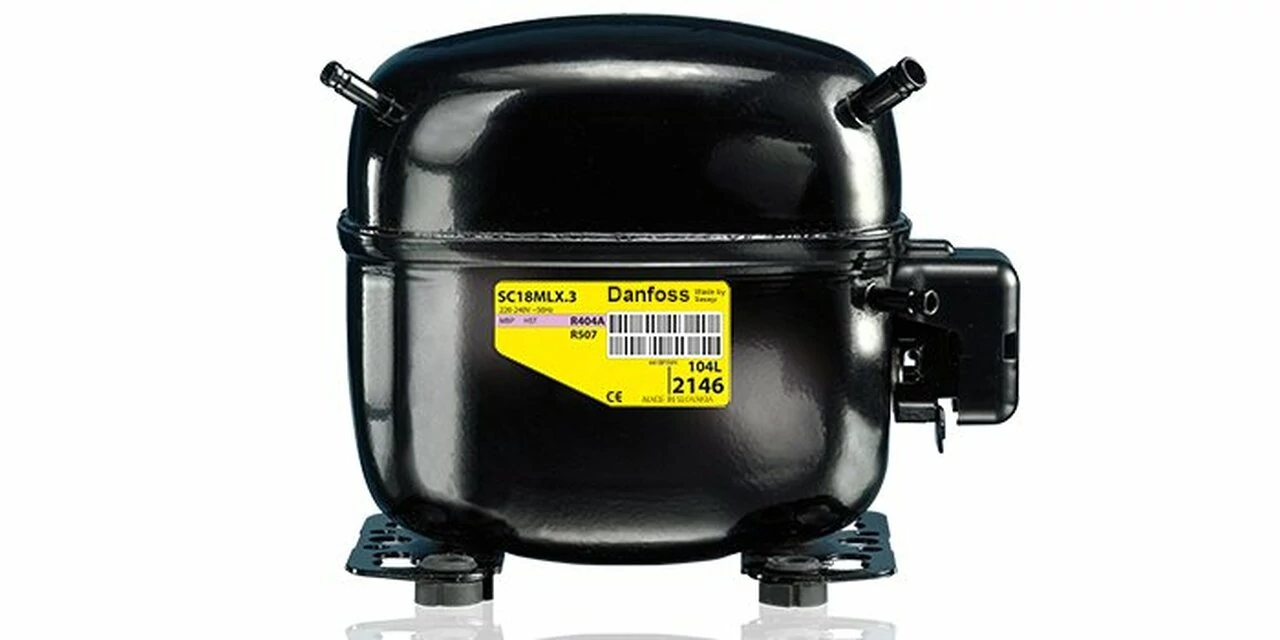

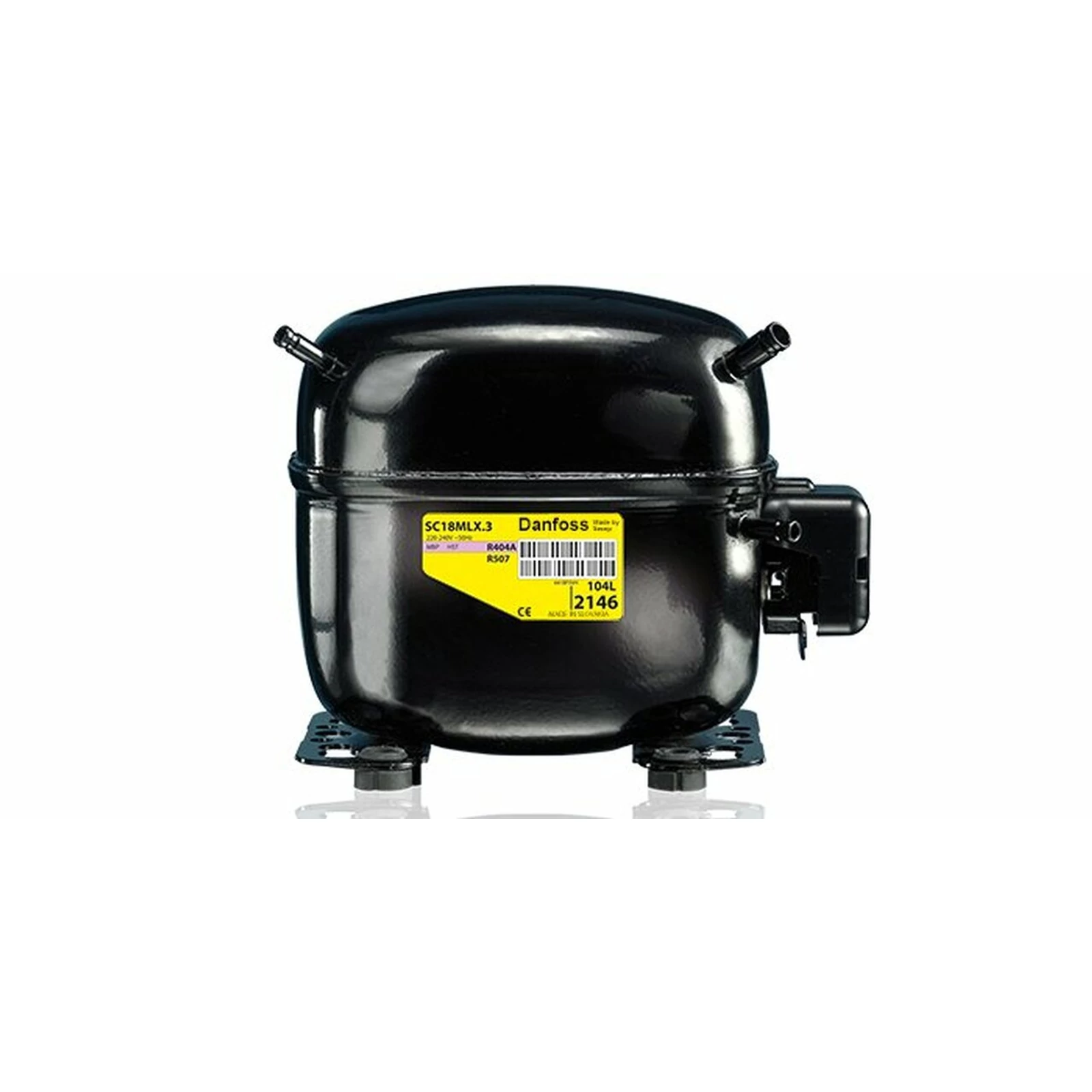

- Description: Service kit SC12DL compressor
- Discharge connection angle [°]: 37 °
- Discharge connection comments: Rubber plug
- Discharge connection diameter [mm]: 6.2 mm
- Discharge connection height [mm]: 100 mm
- Discharge connection material: Copper
- Economizer: No
- Free gas volume [cm3]: 1460 cm³
- Frequency [Hz]: 50
- Height from baseplate [mm]: 203 mm
- High value of nominal voltage at 50Hz [V]: 240 V
- High value of voltage range at 50Hz [V]: 255 V
- Length [mm]: 255 mm
- Liquid injection: No
- Low value of nominal voltage at 50Hz [V]: 220 V
- Low value of voltage range at 50Hz [V]: 187 V
- LRA HST 60Hz [A]: 20.4 A
- LRA HST [A]: 20.4 A
- Main winding resistance for single-phase compressors [Ohm]: 3.7 Ohm
- Model Number: SC12DL
- Motor type: CSIR
- No. of phases (compressor): 1
- Oil quantity [cm3]: 600 cm³
- Oil type: POE
- Packing format: Single pack
- Packing quantity: 1
- Process connection angle [°]: 37 °
- Process connection comments: Rubber plug
- Process connection diameter [mm]: 6.2 mm
- Process connection height [mm]: 183 mm
- Process connection material: Copper
- Refrigerant: R404A, R407C
- Refrigerant charge [kg] [Max]: 1.3 kg
- RLA: 3.90 A
- Rotational speed at 50Hz [rpm]: 3000 rpm
- Segment usage: Refrigeration MT
- Refrigeration HT
- Speed Platform: Fixed-speed
- Start capacitor capacitance: 80 µF
- Suction connection angle [°]: 37 °
- Suction connection comments: Rubber plug
- Suction connection diameter [mm]: 10.2 mm
- Suction connection height [mm]: 183 mm
- Suction connection material: Copper
- Swept volume [cm3]: 12.87 cm³
- Technology: Reciprocating
- Total height [mm]: 209 mm
- Type: SC
- Type designation: Single pack
- Voltage 50Hz [V]: 220 V
- Voltage 50Hz [V] [Max]: 240 V
- Width [mm]: 151 mm
- Winding temperature short term [°C] [Max]: 135 °C
- Winding temperature stat [°C] [Max]: 125 °C
Paraméterek
| Hűtőközeg | R404a |
