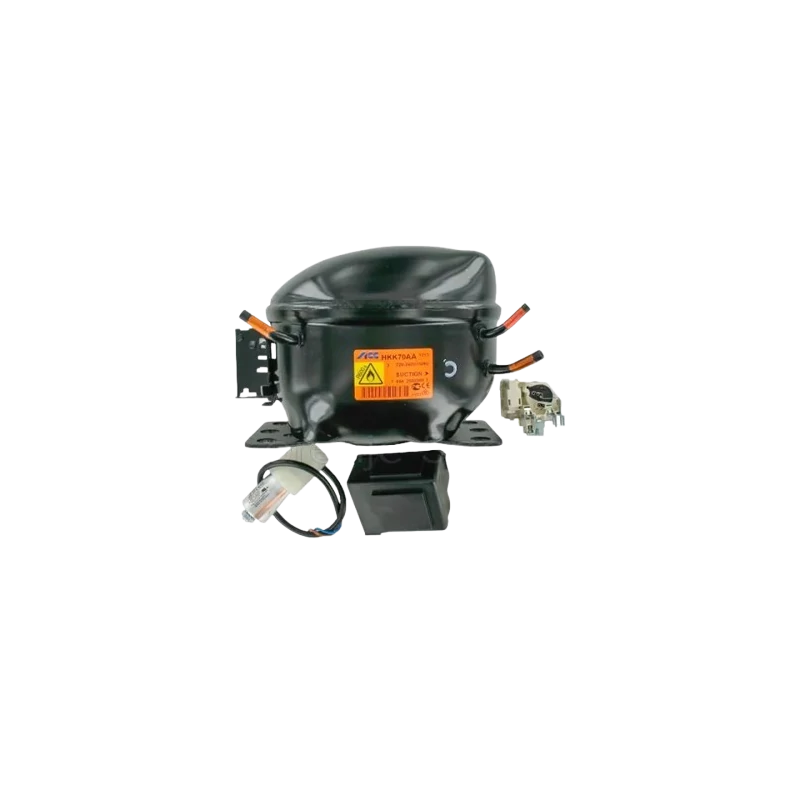

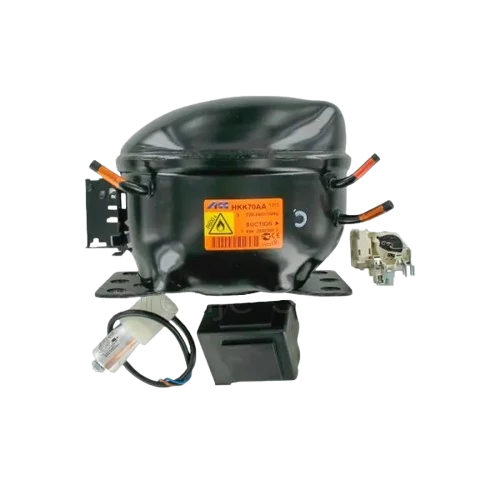

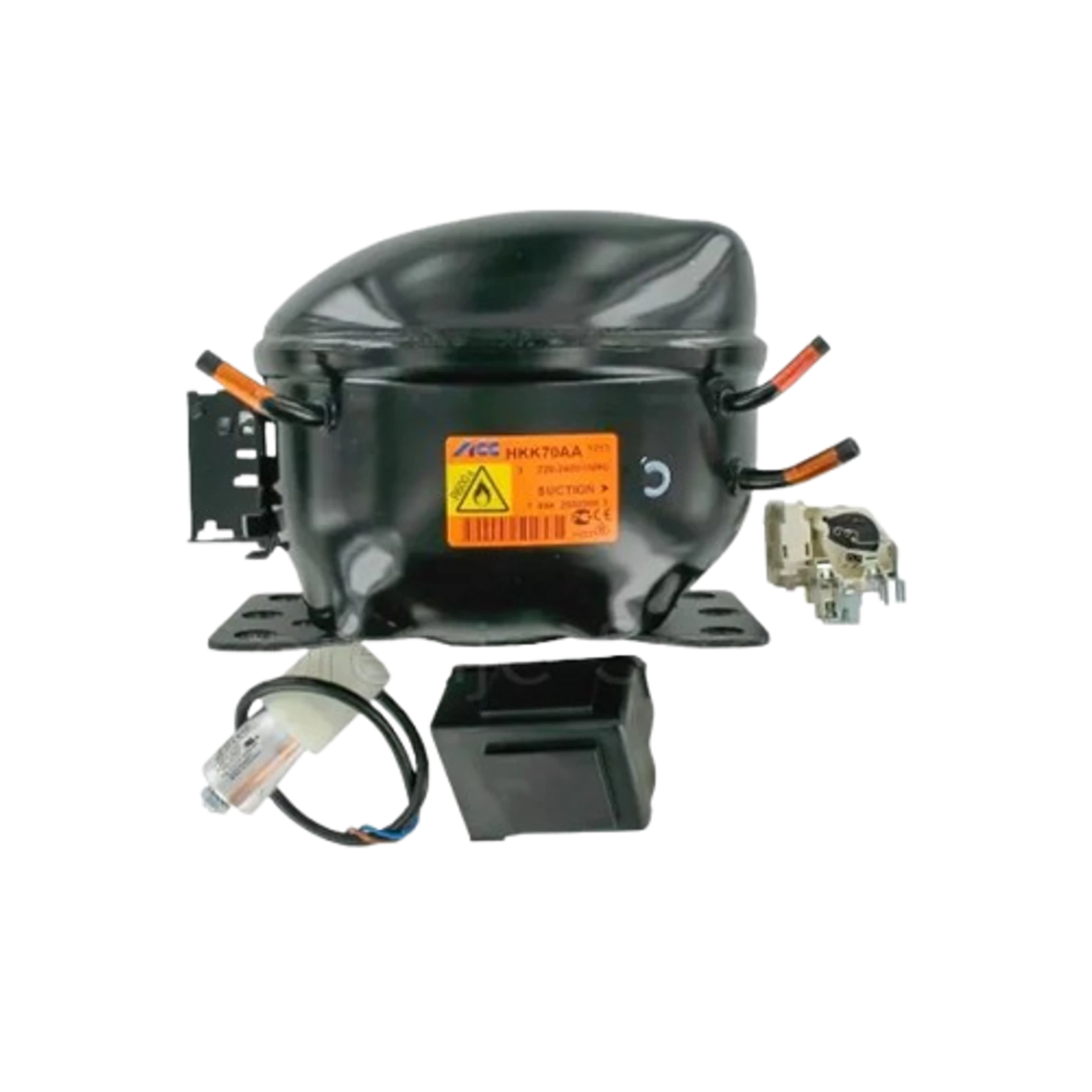

Product Data Sheet HKK70AA K3
1 Application
|
Application |
Refrigerant |
Expansion Device |
Cooling Type |
|
LBP |
R600a |
Capillary |
Static |
1.1 Application Conditions
|
Max. Ambient temp.1 |
[°C] |
43 |
|
Max. Steady discharge temp.2 |
[°C] |
120 |
|
Max. Peak discharge temp.2, 5 |
[°C] |
135 |
|
Max. Steady condensing temp.3 |
[°C] |
60 |
|
Max. Peak condensing temp.3, 5 |
[°C] |
70 |
|
Max. Winding temp.4 |
[°C] |
130 |
1…static
2…measured on discharge tube, 50 mm from the shell
3…measured in the middle of condenser
4…calculated out of the measured difference of resistance
5…max 5% of lifetime
Variant code according to Label; see General Product Documentation
2 Mechanical Data
|
Displacement |
[cm³] |
6,6 |
|
Net Weight1 |
[kg] |
8,1 |
|
Oil Type |
|
mineral |
|
Oil Charge |
[ml] |
165 |
|
Oil Viscosity |
[cst] |
5 |
|
Suction muffler |
|
Semi direct |
|
Free Gas Volume |
[cm³] |
1520 |
|
Length L |
[mm] |
194,2 |
|
Width W |
[mm] |
151,5 |
|
Height H |
[mm] |
159 |
1...Compressor without accessories
3 Electrical Data
|
Power supply |
[V] |
220 - 240 |
|
Voltage range1 |
[V] |
187 - 264 |
|
Frequency |
[Hz] |
50 |
|
Phase |
[ph] |
1 |
|
Motor type |
|
RSCR |
|
Locked rotor current @ steady state |
[A] |
2,6 |
|
Max. Locked rotor current / measured after 4 sec |
[A] |
6,9 / 2,9 |
|
Main wind. Resistance @ 25°C |
[Ω] |
32,8 |
|
Start wind. Resistance @ 25°C |
[Ω] |
32,4 |
1...Operating and starting (starting condition @ +43°C windings temperature, 3,5 barA equalized pressure)
All data measured according to EN 60335
3.1 Electrical Component Data
|
Terminal board |
|
ECC |
|
Starting device |
Code |
K100 |
|
PTC |
Type |
H |
|
Run Capacitor |
[µF] |
4 |
3.2 Motor Protector
|
Motor Protector |
BDG |
Senbao |
|
Type |
AE 25 FJ x |
B43 115 x |
|
Code |
F6 |
MW |
4 Performance Data
4.1 Cooling Capacity, COP and Input Power
Performance Table Cooling Capacity @ ASHRAE / EN12900 (CECOMAF); 220V, 50Hz; [W]:
|
Evap. temp. [°C] |
-35 |
-30 |
-25 |
-23,3 |
-20 |
-15 |
-10 |
||
|
Condensing temp. @ |
ASHRAE [°C] |
40 |
59,4 |
84,5 |
114,3 |
125,5 |
148,9 |
188,1 |
232,0 |
|
45 |
57,5 |
82,0 |
111,5 |
122,7 |
146,0 |
185,5 |
230,0 |
||
|
50 |
55,6 |
79,5 |
108,7 |
119,8 |
143,2 |
183,0 |
228,0 |
||
|
55 |
53,7 |
77,0 |
105,9 |
117,0 |
141,0 |
180,4 |
226,0 |
||
|
60 |
51,8 |
74,5 |
103,1 |
114,2 |
137,5 |
177,8 |
224,0 |
||
|
EN12900 (CECOMAF) [°C] |
C55 |
44,0 |
63,0 |
87,0 |
97,0 |
116,0 |
148,0 |
186,0 |
|
Performance Table COP with RC @ ASHRAE / EN12900 (CECOMAF); 220V, 50Hz; [W/W]:
|
Evap. temp. [°C] |
-35 |
-30 |
-25 |
-23,3 |
-20 |
-15 |
-10 |
||
|
Condensing temp. @ |
ASHRAE [°C] |
40 |
1,36 |
1,66 |
1,96 |
2,06 |
2,26 |
2,56 |
2,86 |
|
45 |
1,30 |
1,58 |
1,86 |
1,96 |
2,14 |
2,42 |
2,70 |
||
|
50 |
1,24 |
1,50 |
1,76 |
1,85 |
2,02 |
2,28 |
2,54 |
||
|
55 |
1,19 |
1,43 |
1,66 |
1,75 |
1,90 |
2,14 |
2,38 |
||
|
60 |
1,13 |
1,35 |
1,57 |
1,64 |
1,78 |
2,00 |
2,22 |
||
|
EN12900 (CECOMAF) [°C] |
C55 |
0,98 |
1,18 |
1,38 |
1,45 |
1,57 |
1,77 |
1,96 |
|
Performance Table Input Power with RC @ ASHRAE / EN12900 (CECOMAF); 220V, 50Hz; [W]:
|
Evap. temp. [°C] |
-35 |
-30 |
-25 |
-23,3 |
-20 |
-15 |
-10 |
||
|
Condensing temp. @ |
ASHRAE [°C] |
40 |
43,8 |
51,0 |
58,4 |
61,0 |
65,9 |
73,5 |
81,1 |
|
45 |
44,2 |
51,9 |
60,0 |
62,8 |
68,3 |
76,7 |
85,2 |
||
|
50 |
44,6 |
52,9 |
61,7 |
64,8 |
70,9 |
80,2 |
89,6 |
||
|
55 |
45,1 |
54,0 |
63,6 |
67,0 |
73,8 |
84,3 |
95,0 |
||
|
60 |
45,7 |
55,2 |
65,8 |
69,6 |
77,1 |
88,9 |
101,0 |
||
|
EN12900 (CECOMAF) [°C] |
C55 |
45,1 |
54,0 |
63,6 |
67,0 |
73,8 |
84,3 |
95,0 |
|
|
Test Conditions @ 220V/50Hz |
ASHRAE |
EN12900 (CECOMAF) |
|
|
Evaporating temp. |
[°C] |
-23,3 |
-25 |
|
Condensing temp. |
[°C] |
55 |
55 |
|
Sub cooling temp. |
[°C] |
32 |
55 |
|
Suction temp. |
[°C] |
32 |
32 |
|
Ambient temp. |
[°C] |
32 |
32 |
Tolerance Range:
COP ± 5%
Cooling Capacity ± 5%
4.2 Rated current @ 55°C condensing temperature
|
Evaporating temperature |
[°C] |
-30 |
-23,3 |
-10 |
|
Rated current with RC |
[A] |
0,25 |
0,31 |
0,42 |
5 Reliability Tests
|
High Temperature CECOMAF GT4 – 002 |
passed |
|
Wear CECOMAF GT4 – 003 |
passed |
|
On – Off CECOMAF GT4 – 004 |
passed |
|
Transport test ASTM D4728 |
passed |
