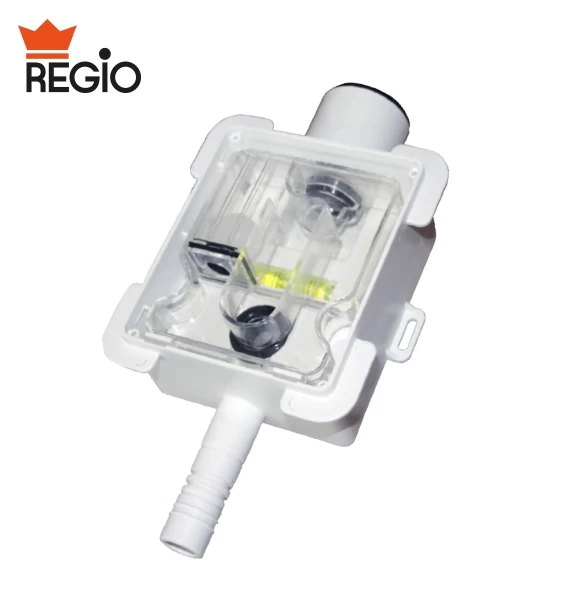

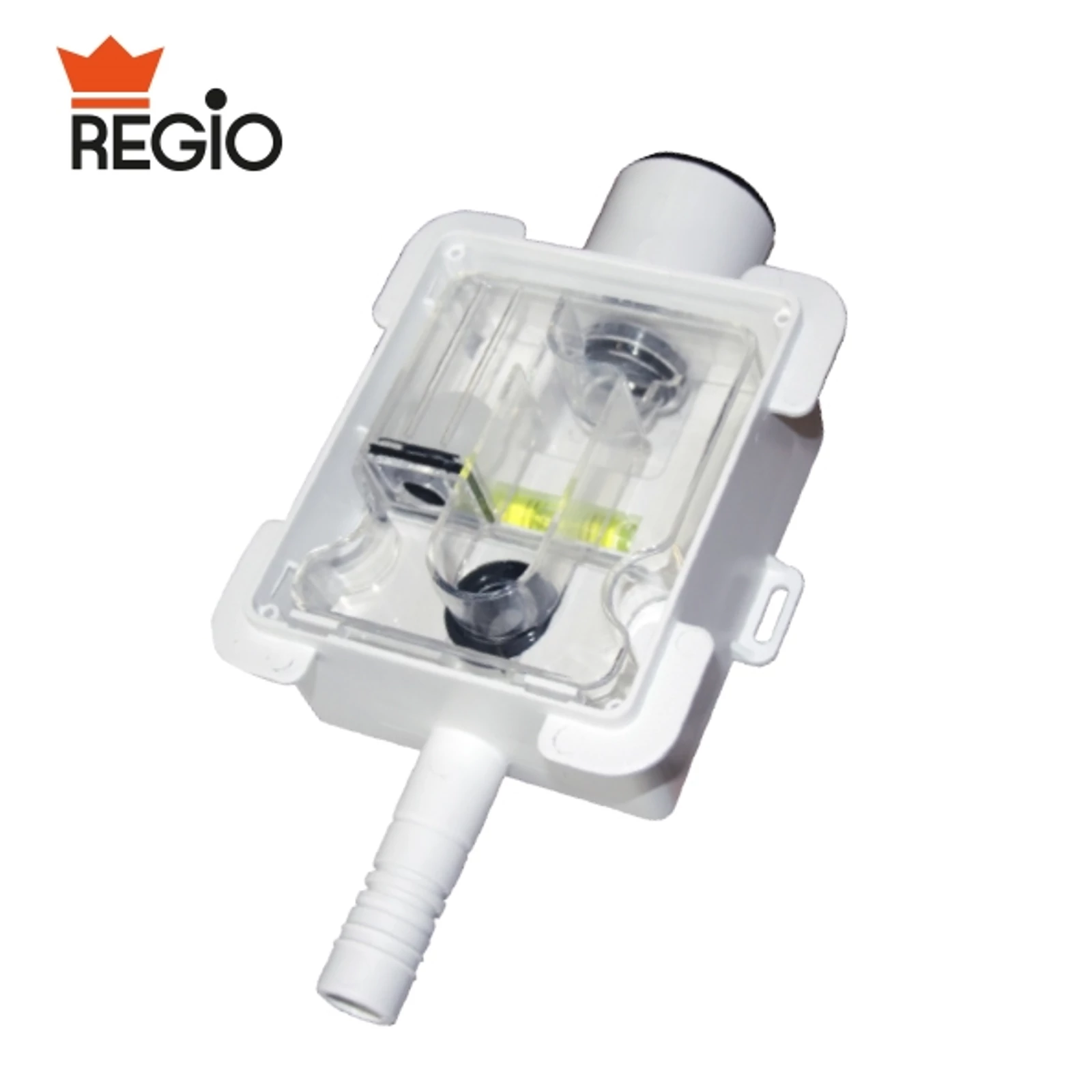

TECHNICAL FEATURES:
- ELIMINATES THE ODOUR PROBLEM
- FOR VERTICAL INSTALLATION ON WALL OR IN A CHASE
- CLEAR TRAP BODY FOR EASY INSPECTION
- CLEAR TRAP BODY CAN BE REMOVED FOR MAINTENANCE
- BUILDING SITE COVER TO PROTECT AGAINST INGRESS OF PLASTER
- ATTRACTIVE REMOVABLE COVER FOR ACCESS TO TRAP BODY
- OUTSIDE LEDGE FOR INSTALLATION FLUSH WITH UNFINISHED WALL
- COVER DESIGN ALLOWS FOR FASTENING WITH SCREWS
- PIPE INLET SIZE: FROM Ø16 UP TO Ø40
- BUILT-IN SPIRIT LEVEL
- PIPE OUTLET CONNECTION COMPATIBLE WITH THESE CODES: 11126345- 11126346-11126327- 11126324-11126346T (WITH O-RING)
- Ø40-36-32-28 PIPES CAN BE useD WITH THE
- ADAPTER SLEEVE “MTG” (11126353)
- WITH ACCESSORY joinING SLEEVE MG-TCR21 COD. 11126313
- CAN BE useD TO CONNECT THE RIGID CONDENSATE PIPE TCR21 CODE 11126324
